ICT Patterns and Machining

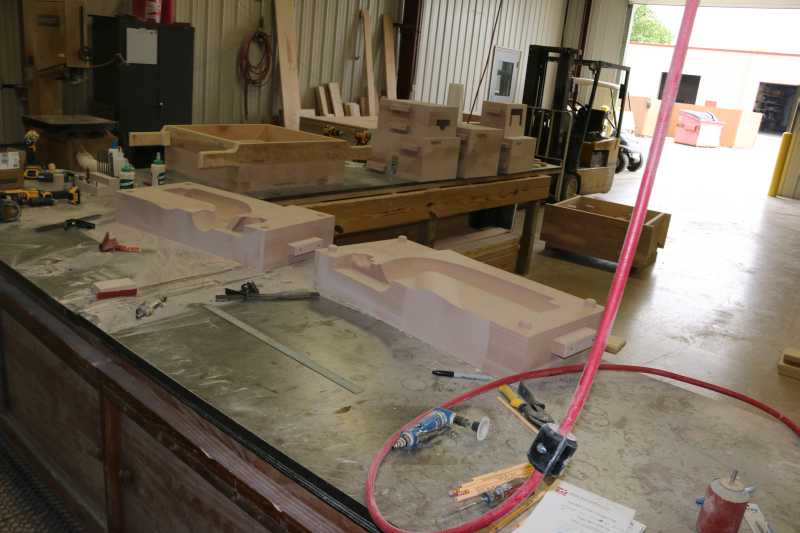

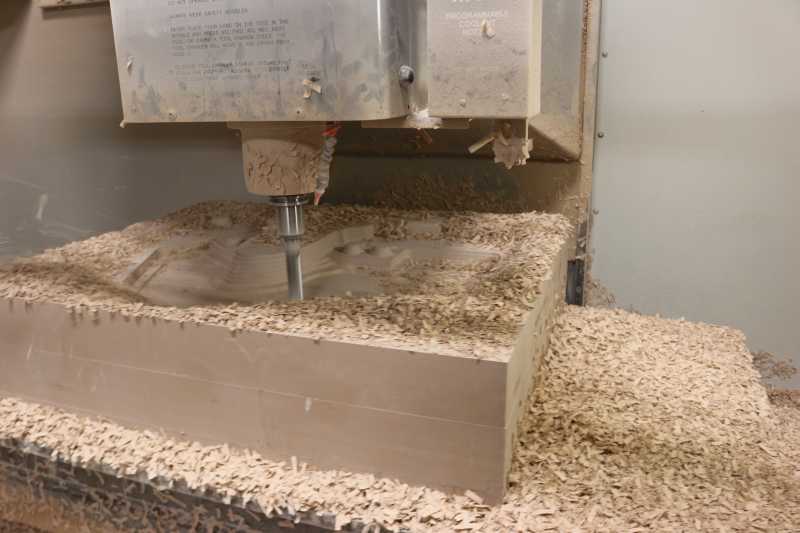

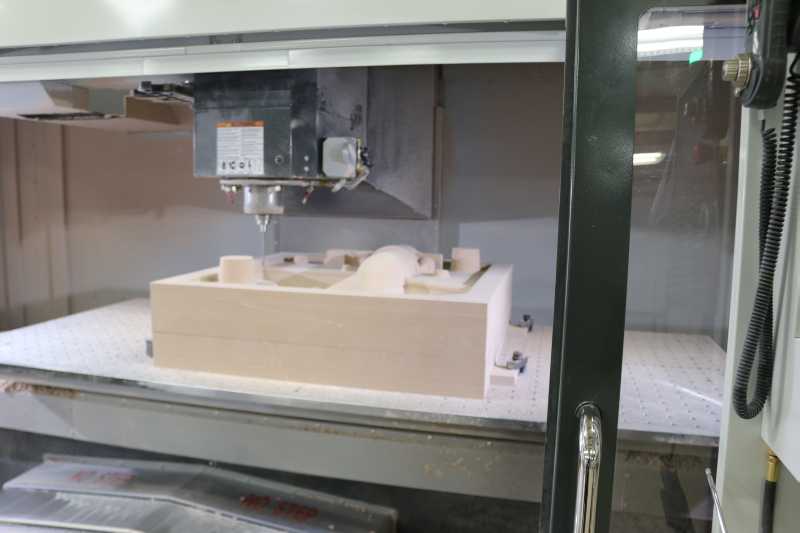

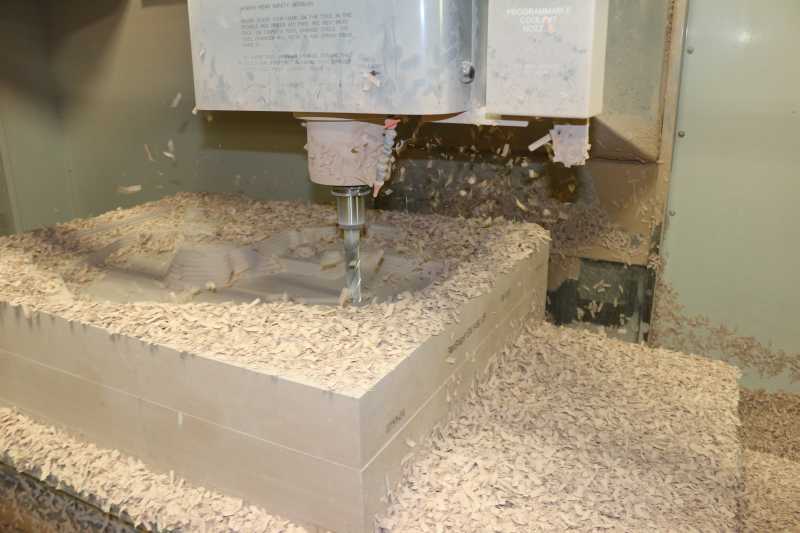

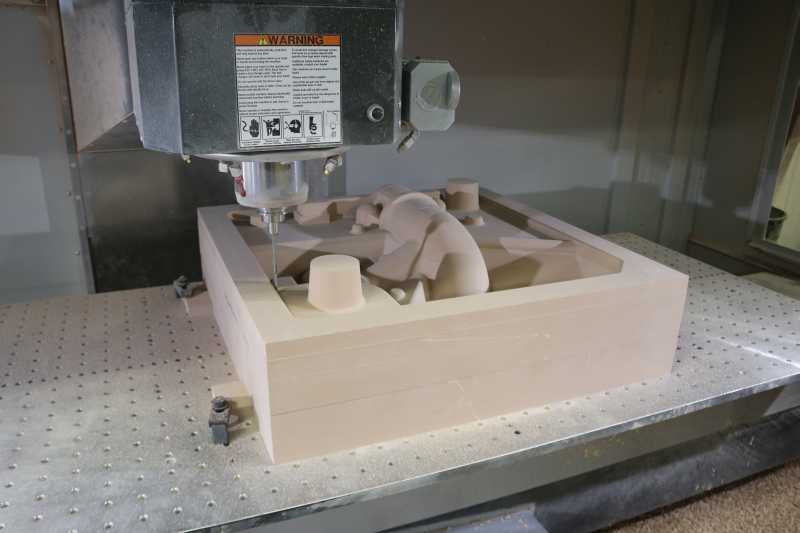

The process to quality castings begins with quality patterns and core boxes. Innovative Castings proudly makes 100% of our patterns and core boxes in-house. Critical engineering, design, modeling and CNC machining are involved in the process of making patterns and core boxes for production castings and prototypes.

ICT uses CAD software that allows us to create models and secondary tooling in the shortest amount of time possible. As a company that is commonly asked to provide quick turnaround of complex parts (e.g. six-port exhaust manifolds), state-of-the art software helps to meet these deadlines. These tools save hours in pattern making design and are essential, especially for prototype parts. After prototypes are approved, any changes can easily be transferred to the file.

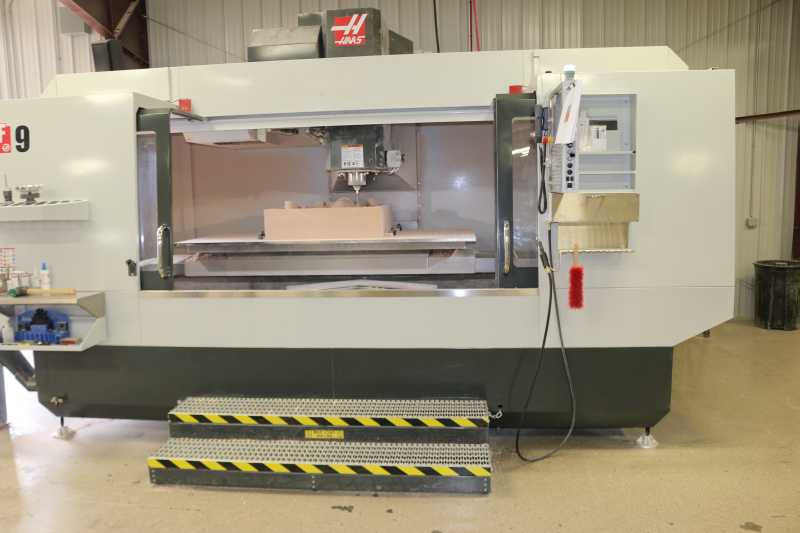

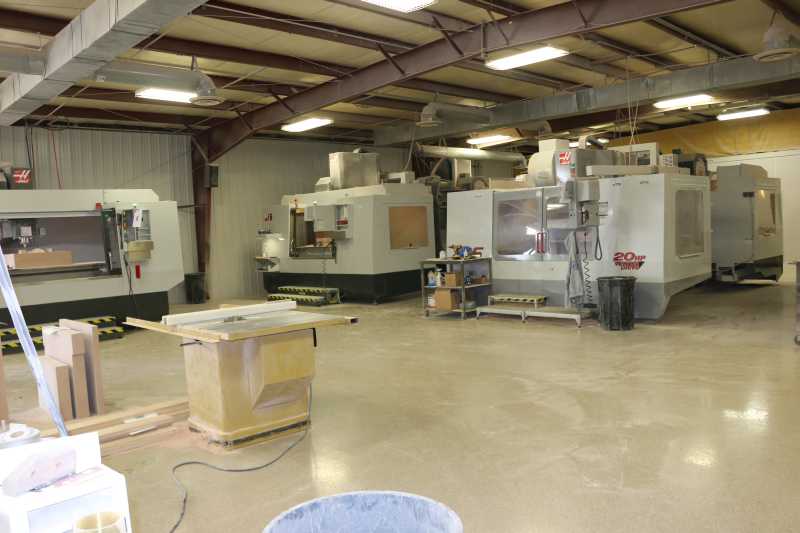

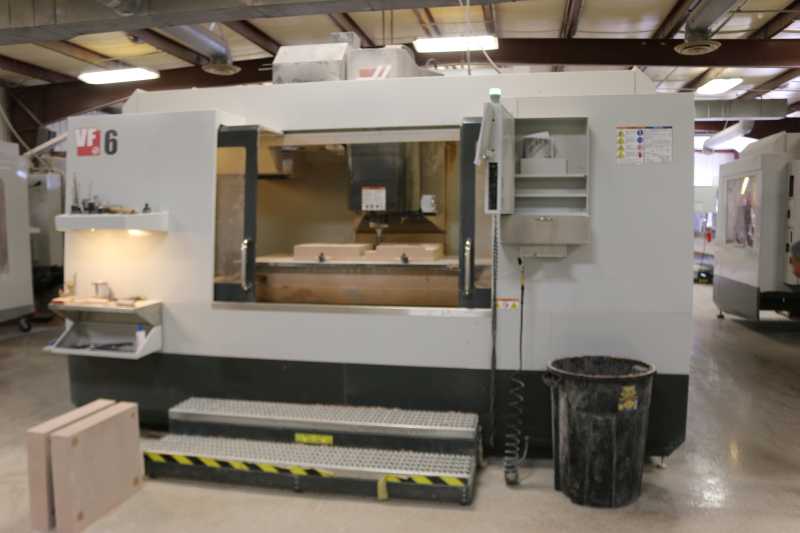

Your casting is only as good as the pattern that was made to produce it, which is why Innovative Castings has the in-house engineering expertise along with state-of-the art CNC technology to produce the most accurate and long lasting patterns. Quality pattern making provides years of repeatable, accurate and quality castings.

Pattern Making Gallery Click to expand/collapse
